Man Features
8x10/100BaseTX ports+1x1000BaseX 8 IEEE 802.3af -compliant PoE compliant Ethernet ports
RSTP/STP for network redundancy
IMPv1/v2c/v3 for different levels of network management
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease
network planning
IGMP snooping for filtering multicast traffic
Easy network management through web browser, CLI,
Telnet /serial console, SNMP
Industrial-grade design with -40 to +75°C operating
temperature and redundant power inputs
Metal, IP40 protection,DIN-Rail mounting, wall mounting
Overview
P309A managed Ethernet switch come standard with 8 10/100BaseTX 802.3af (PoE) compliant Ethernet ports,
provide up to 15.4 watts at 48VDC input per PoE port. When commercial power is not available or is costprohibitive
to provide locally in some places, P309A switch allow power to be supplied to the connected devices such as
surveillance camera, wireless access point etc.
Features and Benefits
·Advanced PoE management function
·P309A: 8x10/100BaseTX ports + 1x100/1000BaseX (SFP slots)
PoE ports: 1/2/3/4/5/6/7/8
·Commend Line Interface (CLI) for quickly configuration major managed functions
·InMax Ring Protocol “MAX Ring" (recovery time < 20ms) and
RSTP/STP for network redundancy
·IGMP snooping for filtering multicast traffic
·Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
·QoS and ToS/DiffServ to increase determinism
·Port Trunk for optimum bandwidth utilization
·SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
·SNMPv1/v2c/v3 for different levels of network management
·RMON for efficient network monitoring and proactive capability
·Bandwidth management prevents unpredictable network status
·Lock port function for blocking unauthorized access based on MAC address
·Automatic alarm through e-mail, relay output
·Support port mirroring
·Support traffic control of multicast and broadcast
Specifications
Standards:
IEEE 802.3af
IEEE 802.3
IEEE 802.3u
IEEE 802.1D-2004 for STP
IEEE 802.1w for Rapid STP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3x for Flow Control
Protocols:
IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client,
TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog,
SSH, SNMP Inform, LLDP, SNTP Server/Client
MIB:
MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,
Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control:
IEEE 802.3x flow control, back pressure flow control
Switch Properties:
Priority Queues: 4
Max. Number of Available VLANs: 256
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 8K
Packet Buffer Size: 1 Mbit
Interface:
Fiber Ports: 100/1000BaseX (SFP slots)
RJ45 Ports: 10/100BaseTX auto negotiation
Console Port: RS-232(RJ45 connector)
Alarm Contact: 2 relay outputs with current carrying capacity of 1A@24V
LED:
System Led:SYS
Port Led:Copper: Link1~8, Act1~8
Fiber: Link/ Act G1
Power Led:PWR
Power Requirements:
Input Voltage: 48 VDC (36 ~ 72VDC) or 110/220 VAC (85 ~ 265V)
Input current: 0.05A@48VDC,2.5W
Input current(Max): 0.1A@48VDC,5W(with no PD)
Input current(Max): 2.7A@48VDC,128W(with 8 PD)
Overload Current Protection: Present
Reverse Polarity Protection: Present
Connector: 3-contact terminal blocks
Mechanical Properties:
Housing: Metal, IP40 protection
Dimensions: 123 x 122 x 44.3 mm
123 x 158 x 45.8 mm with wall hanging
123 x 122 x 53.3 mm with rail
Weight: 750g
Installation: DIN-Rail mounting, wall mounting
Environmental Limits:
Operating Temperature:
Standard Models: 0 to +60°C (32 ~ 140°F )
Wide Temp. Models:-40 to +75°C (-40 to 167°F)
Storage Temperature: -40 to +85°C (-40 to 185°F )
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications:
Safety: UL 60950-1
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 3
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty Period: 5 years

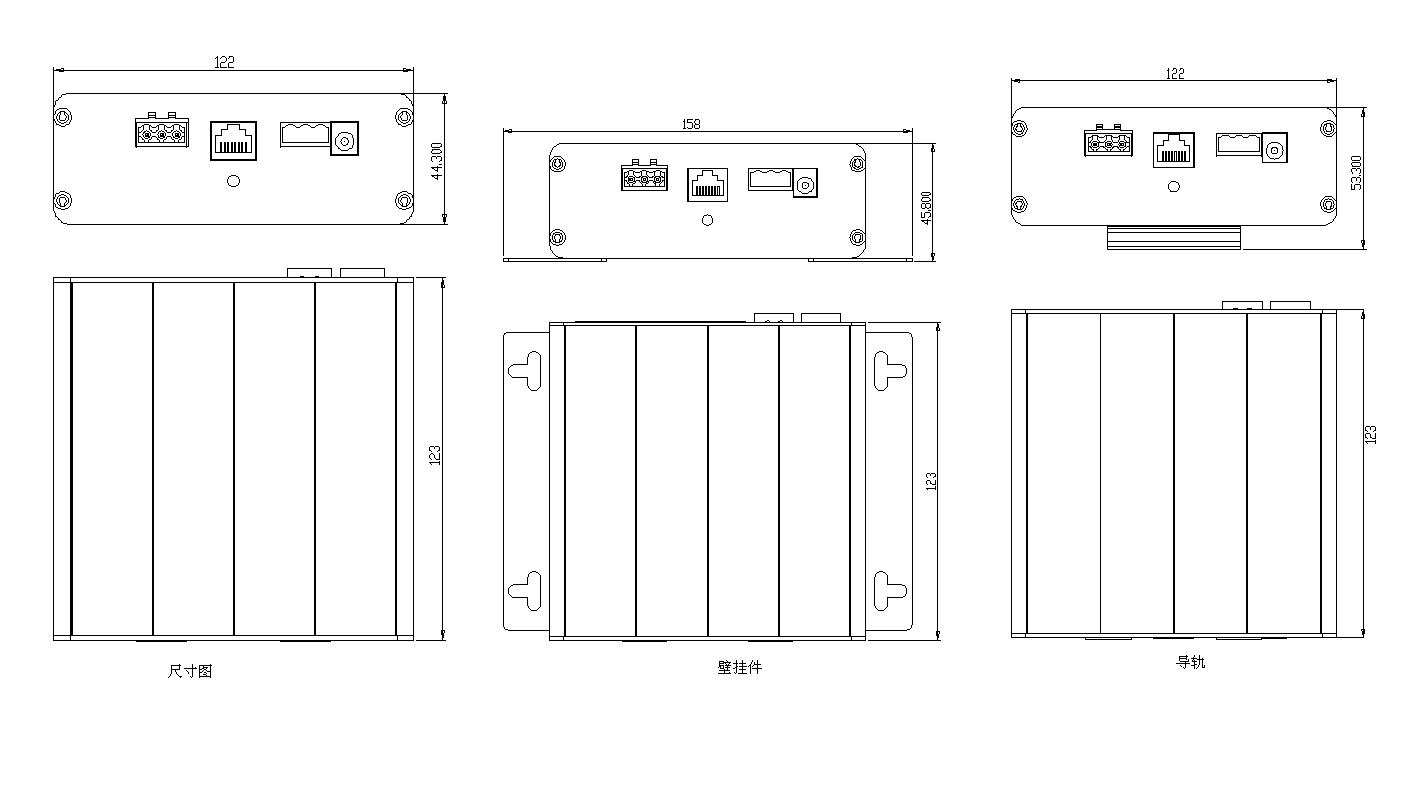

Dimensions
