Man Features
Modularized design, Flexible ports configuration, and support
any combination
Up to 24 ports and 4 Giga SFP ports
Proprietary Protocol "Max Ring" (recovery time < 20ms),
RSTP,STP and MSTP for network redundancy
SNMPv3,IEEE 802.1X,HTTPS,and SSH to enhance network security
Support VLAN and QoS
Support IGMP Snooping and GMRP
Easy network management through web browser,CLI,Telnet/serial console,Windows
utility and SNMP
Industrial-grade design with -40 to +75°C operating temperature and redundant power
inputs
Metal,IP40 protection
Optional front and rear wiring brings convenience for different wiring environment
Overview
PT3628 Series Modularized Advanced Managed Industrial Ethernet Switches equip with up to 4 Gigabit Ethernet ports. The “InMax Ring" redundant ring (recovery time < 20ms),RSTP,STP,and 110/220 VDC or 110/220 VAC dual isolated redundant power supplies increase the reliability of your communications. Optional front and rear wiring brings convenience for different wiring environment. AII these features make PT3628 Series suitable for a variety of
industrial applications
Features and Benefits
Ports
·Uplink:
4x1000BaseX SFP slots
·Downlink:
Up to 24 ports with 100M, 3 card slots
Card slots support 8F,8T,4T4F,2F6T,6F2T.
High Reliability
·Support Proprietary Protocol "Max Ring" (recovery time < 20ms),STP,and RSTP for
network redundancy
·Support LACP to expand the bandwidth of a switch port,balance the traffic among all the
ports in link aggregation and enhance connection reliability.
Management & Maintainability
·Support SNMP v1/v2c1v3 and RMON MIB Group 1,2,3,9
Comprehensive Security
·Support 802.1X authentication
·Support MAC address authentication
Versatile QoS Policies
·0ffer powerful hardware ACL capability
·Support different priority criteria: DSCP priority,802.1p priority,Strict Priority(SP) and
Weight Round Robin(WRR)
·Support diversified flow-based QoS:rate limit,traffic shape,traffic statistics,and priority
marking
Specifications
Standards:
IEEE802.3
IEEE 802.3u
IEEE802.3z
IEEE 802.3ab
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for STP
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple STP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk
Protocols:
IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client, TFTP,
SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, SSH,
SNMP Inform, LLDP, SNTP Server/Client
MIB:
MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,
Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control:
IEEE802.3x flow control,back pressure flow control
Switch Properties:
Priority Queues: 4
Max. Number of Available VLANs: 4094
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 8K
Packet Buffer Size: 2 Mbit
Interface:
Fiber ports:1000BaseX(SFP slots),100BaseFX(ST connector)
RJ45 ports:10/100BaseTX auto negotiation
Console port:RS-232(RJ45 connector)
Alarm Contact:
1 relay outputs with current carrying capacity of 2A@250VAC/220VDC
Power Requirements:
Redundant dual inputs,A C-powered or DC-powered
Power : 110,220VDC(88-300V) or 110,220VAC(88-300V)
Input Voltage: 24VDC(18~36VDC)
48VDC(36~72VDC)
110/220VAC(88~300V)
Input Current: 0.41A@24VDC,10W
0.21A@48VDC,10W
0.045A@220VAC,10W
Input Current(Max): 1.83A@24VDC,44W
0.91A@48VDC,44W
0.2A@220VAC,44W
Overload Current Protection: Present
Reverse Polarity Protection: Present
Connector: 5-contact terminal blocks
Physical Characteristics:
Housing: Metal,IP40 protection
Dimensions: 440 x 44.5 x 370mm
Weight: 5kg
Installation: 19-inch 1U rack installation
Environmental Limits:
Operating Temperature:-40 ~ +85°C (-40 ~ 187°F )
Storage Temperature: -40 ~ +85°C(-40 ~ 185°F)
Ambient relative Humidity: 5 ~ 95%(non-condensing)
Standards and Certifications:
Safety: UL 60950-1,CSA C22.2 No, 60950-1 and EN 60950-1
EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level4,EN 61000-4-3 (RS) Level3,
EN 61000-4-4 (EFT) Level4,EN 61 000-4-5 (Surge) Level4,
EN 61000-4-6 (CS) Level3,EN 61000-4-8 (PFMF) Level5,
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty Period: 5 years

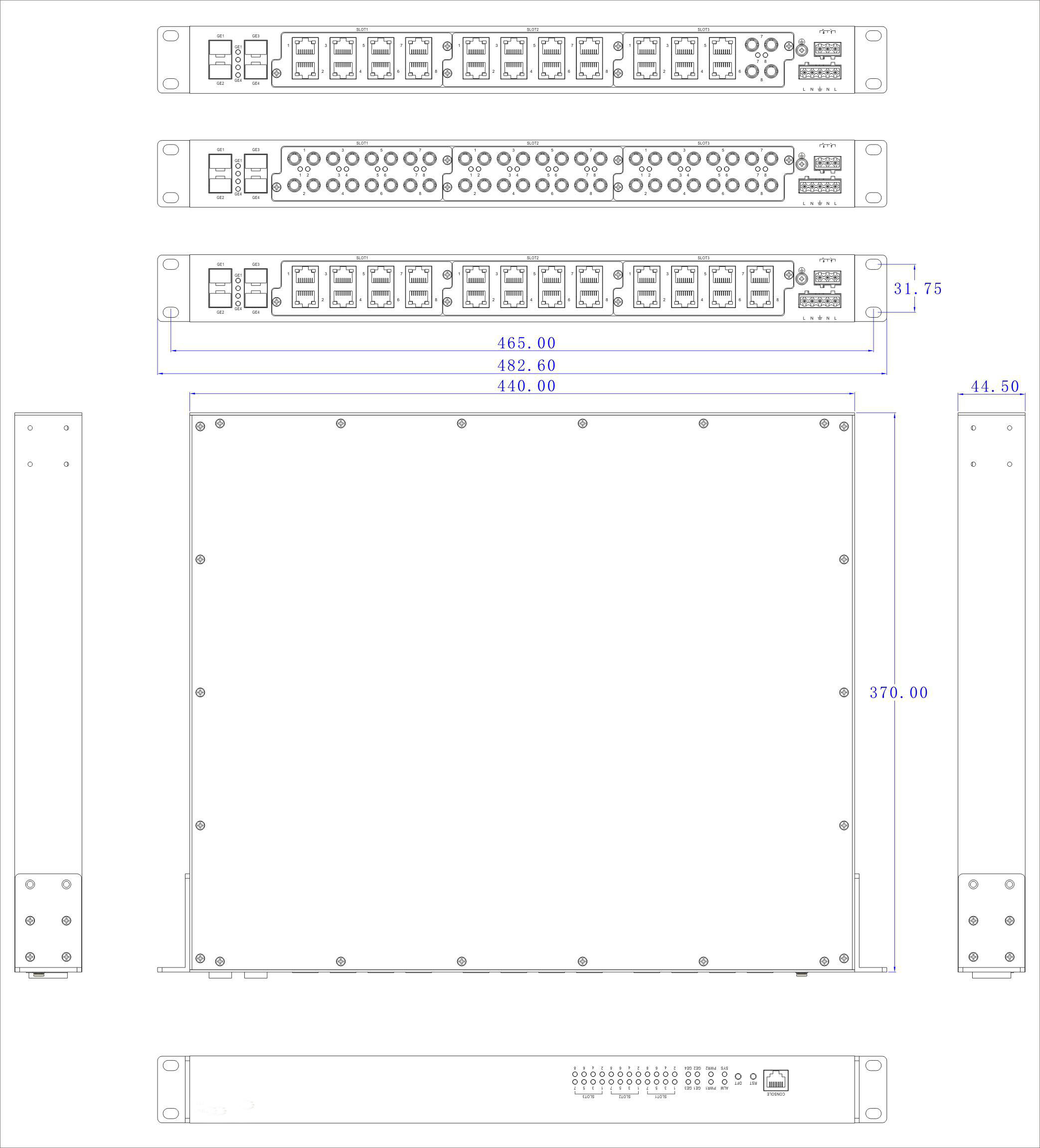

Dimensions
UNIT(mm)
