◎ With 4×10/100/1000BaseT(X) PoE ports, and 1×1000BaseX port
◎ Up to 30 watts output of each PoE port
◎ Smart PoE over current and short circuit protection
◎ Intelligent power consumption detection and classification
◎ Redundant dual 48 VDC power inputs,Built-in over-current protection, Reverse connection protection
◎ -40 to 75℃ operating temperature range (WT models)
◎ No fan, low consumption, industrial design standard,industrial grade electronic components,
environmental protection & lead-free production

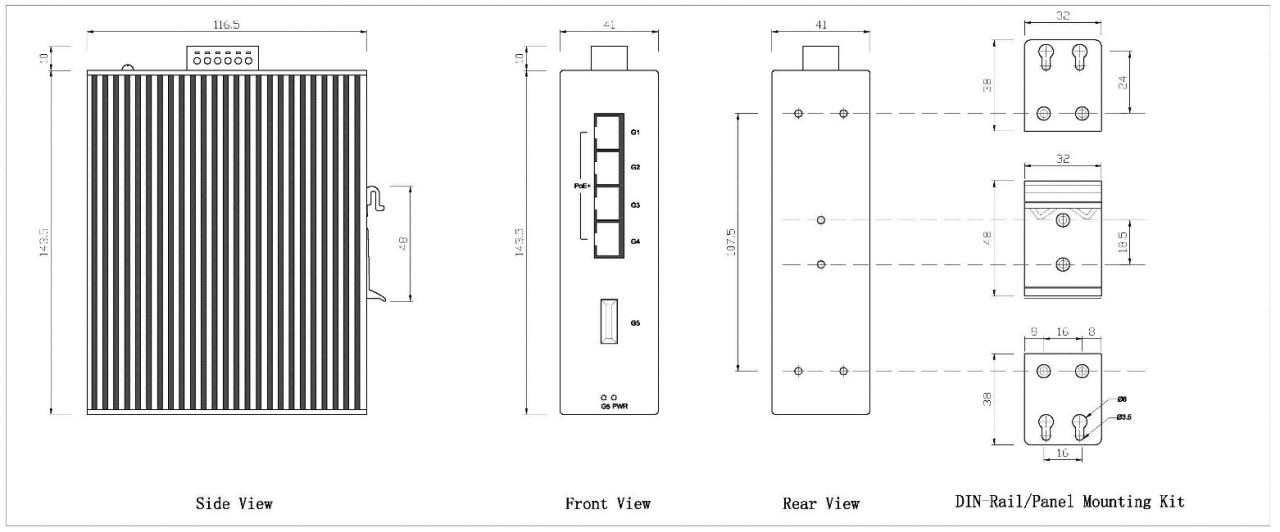

◎ Hard aluminum alloy case(Not sheet metal),DIN-rail and wall mounting
◎ IP Rating up to IP40
◎ No packet lost in 72 hours full load traffic testing

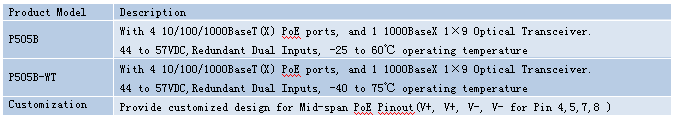

P505B Full Gigabit Unmanaged PoE Industrial Ethernet Switches are equipped with 5 Gigabit Ethernet ports, and up to 4 PoE ports, making them ideal for applications that demand high bandwidth.
No fan, low power consumption design, working function more steady, and no packet lost in 72 hours full load traffic testing.
It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75℃ working temperature steadily, and provide reliable and quick solution for your Ethernet device.
